OLIVER AND BATLLE EHP-100 100 LITER BALL MILL

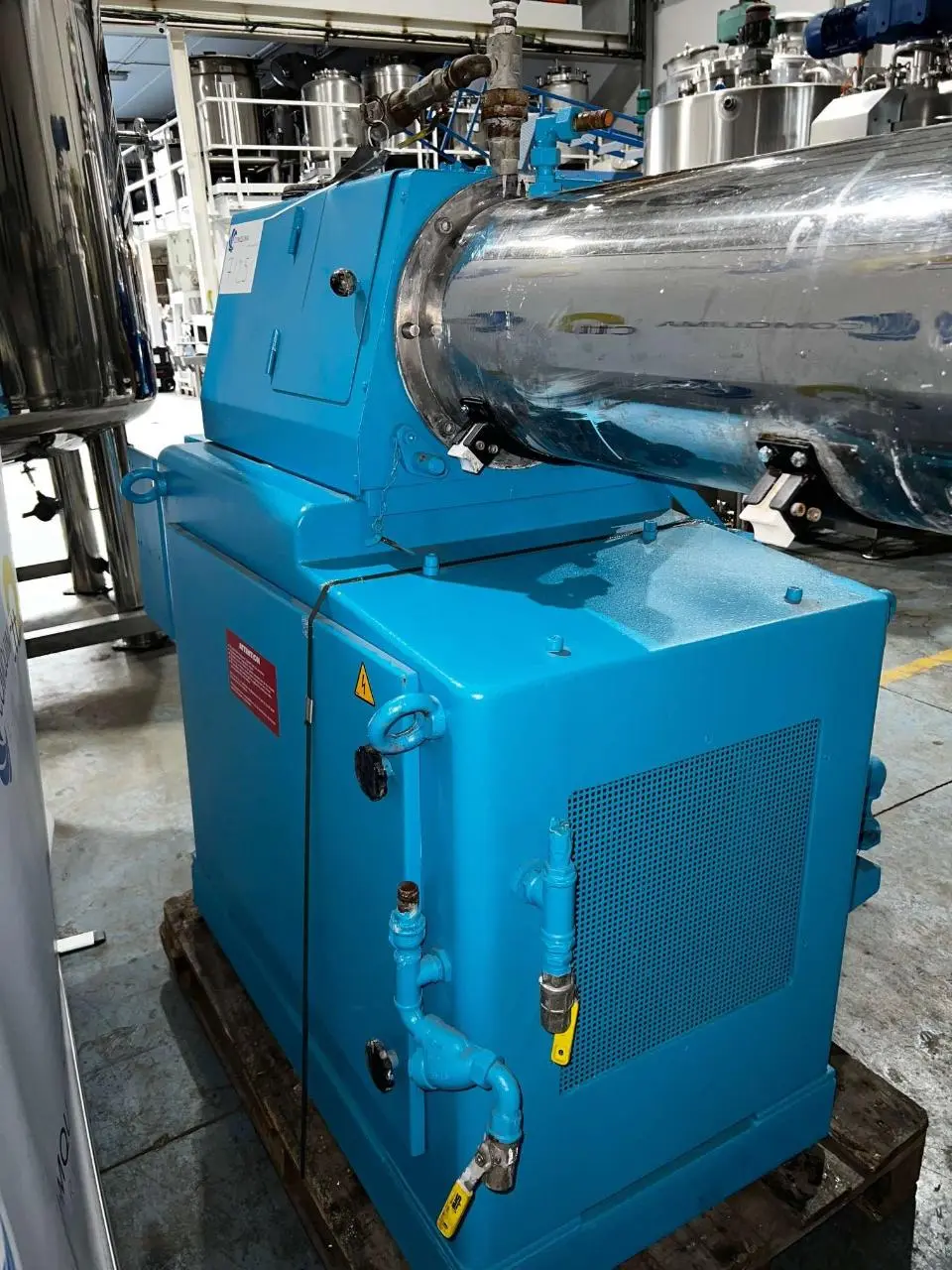

Second-hand ball mill manufactured by OLIVER Y BATLLE model EHP-100 Documentation: CE drawings Manuals Microelement grinding mill SUPERMILL EHP-HM is suitable for application in the production of paints, inks and other products in the chemical industry, where Conditions of the technology and the production process require wet grinding (particle disintegration) of the material to be processed to the particles of a determined fineness of the finished product. SUPERMILL mills refer to the type of cylindrical stirring apparatus with a closed, horizontal cylindrical grinding tank, suitable for working with suspensions of medium to high viscosity, provided that the latter can be transported by pump to feed the machine. The length/diameter ratio of EHP series is higher than the length/diameter ratio of HM series. The degree of disintegration of the product by the SUPERMILL mill: \[ i = \frac{d_h}{d_k} \] is maintained between: \( i_{max} = 10 \) and \( i_{min} = 5 \) , where - \( d_h \) - the average external diameter of the particles agglomerated by the wetting process of the product to be processed - \( d_k \) - the average external diameter of the product particles after passing through the mill The data \( i_{max} \) and \( i_{min} \) are directly proportional to the predispersion of the product, with the fineness limit equal to the pigment particle.
